Business
The One leads the Korean industry with years of know-how and specialized technology,
It becomes the center of Korean industries.
Industry applications

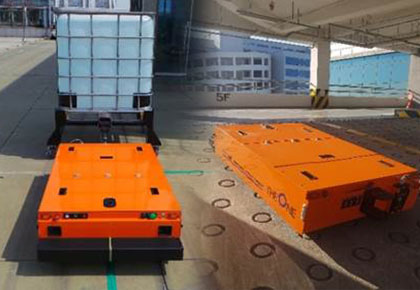

AGV(Automated Guided Vehicle)
This system can automatically tow weights up to 1 ton at a time guided by wires diversing radio waves and by fixed position magnets and it use various application specific control technologies with smart self-driving system. Maximum weight can be increased up to 3 tons.

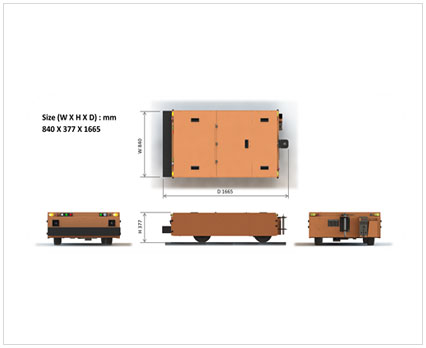

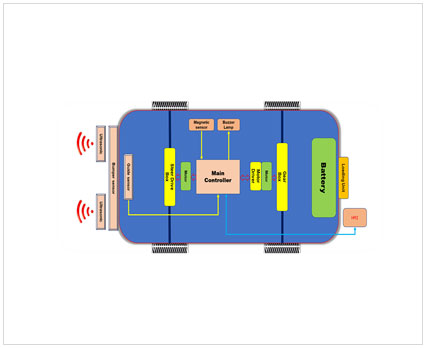

AGV
Remote control button operation enables front, rear, left and right direction control and speed change.A safety device is installed to avoid collisions and can stop within 1m with no load.
| Category | Standard | Method | Considerations |
|---|---|---|---|
| Autonomous driving | Induced frequency : 1.5[khz] Induced current : 200~300[mA] |
E-guided method | Induction line reclamation frequency generator |
| Passive driving | Forward/rear/left/right directional control and speed change | Remote control button operation | - |
| Tow weight(Max) | Max. 1.0 [ton] | Front, Rear towing rod connection method | Flat standard |
| Minimum turning radius | 2.5[m] | Front motor control | Induction line reclamation Minimum Radius |
| Continuous driving time Driving distance Charging time |
7[H] 17[km] 5[H] |
Load : 1,000[kg] Speed : 2.5[km/h] continuous operation |
- |
| Safety device | Stop 1m ahead of the object Collapse stop | Obstacle detection, stop, and then start automatically. Collision stop by rear-end sensor | Ultrasonic sensor Bumper |
| Speed | Low speed : 1.5[km/h] Medium speed : [2.5km/h] High speed : [5.2km/h] |
- | Auto mode |
| Speed control and location detection | Speed control function for Specific location detection | Detection method for burial magnetism | Magnetic line reclamation |
SSD (Memory) Test Equipment
WS(Work Station)-Class Test equipment analyzing reliability of SATA and PCI-e SSD
SSD Test Equipment
- CPU : i7 5930k SR20R 3.5GHz,
- Main Board: ASUS X299e-WS
- Graphic CARD: GV-N210SL
- RAM : DDR4 (PC2133 16G)
SSD Test Chamber
-Constant Temperature Chamber for SSD Test
-Low noise, compact size and user-friendly user interface
| Temp. Chamber System | |
|---|---|
| Temp. Range | 0℃ to 100℃ |
| Temp. Accuracy | ±0.5℃ |
| Temp. Controller | Micro Processor based P.I.D Controller |
| Cooling Method | Peltier device |
| User interface | 4inch TFT LCD, Capacitive touch screen |
| Safety Device | Over/ Under Temp. Protector, Electronic door lock |
| Input | AC 220V 60Hz |
USB Relay HUB
- 4-Channel USB Relay HUB
- USB power short circuit reliability test
| HUB Chip (Microchip) |
USB Type | Package | Port | RemarK | |||
|---|---|---|---|---|---|---|---|
| A Type | B Type | C-Type | 2.0 | ||||
| USB5744 | 3.2 Gen1 | 56-pin (7 x 7 mm) |
4 | Developed | |||
| USB7206 | 3.2 Gen2 | 100-pin (12 x 12 mm) |
5 | 1 | Under Development |
||
| USB7216 | 3.2 Gen2 | 100-pin (12 x 12 mm) |
3 | 1 | 2 | Next Development |
|
| USB7252 | 3.2 Gen2 | 100-pin (12 x 12 mm) |
1 | 2 | 1 | Next Development |
|
